PORTABLE GAS DETECTOR

GasAlertMicroClipXT (4 Gas w/o pump)

Gas sampling method: Natural diffusion

Gas sensor type: Catalytic and electrochemical

Detecting gas: Combustible gas, H₂S, CO, O₂

Simple one-button operation

Standard datalogger (16 hours) and eventlogger (10 events)

Provides 95 dB alarm tone and bright wide-angled alarm bars

Full function self-test of: sensor, battery, circuitry and audible/visual/vibration alarms

Four alarm levels: Instant Low and High Alarm for all gases;TWA (time weighted average) and STEL (short term exposure limit) for H2S, CO; OL (over limit alarm)

Protection Grade: IP66/67

GasAlertMaxXT (4 Gas w/ pump)

Integrated sampling pump

SmartSample technology and powerful diaphragm pump provide reliable block detection and consistent, uniform flow

Easy-to-read, multi-language LCD displays all four gas concentrations (H2S, CO, O2 and combustibles) simultaneously

Visual, vibrating and audible alarm indicators

Low, High, TWA (time weighted average) and STEL (short-term exposure limit) alarms

Rechargeable batteries provide enough power for a 13-hour shift

Easy, one-button interface for simple operation

Flexible user options minimize training

LCD icons help with fast and easy notification of detector operation

Combustible Leak Detector

To detect combustible gas leaks in residential and small commercial applications.
It is small, easy to use and has a 18" long flexible gooseneck for hard to reach areas.

Simple adjustable tick rate increases as the sensor tip approaches a leak
Audio and visual tick rate, fully adjustable
Easy one hand operation
Long 18" (45cm) gooseneck for hard to reach areas
'Tip Light' in sensor cover illuminates the area of the leak
Rubber boot protects instrument
Sensor provides accurate detection
Headphone jack
Separate battery compartment for quick and easy battery replacement

GasAlertExtreme (Single Gas Detector)

Single Gas monitor which detects one of the following gases: CO, H2S, O2, SO2, PH3, CL2, NH3, NO2, HCN, ETO, CLO2, O3, N
Multiple language and datalogging option

Rugged, IP-66/67 highly water-resistant design

Continuous LCD shows real-time gas concentration with backlight in low light (auto and on demand); in alarm (auto)

LOW, HIGH, TWA and STEL alarms with adjustable set points

Provides 95 dB tone and bright LED indication on alarm (typical)

Internal vibrating alarm

2-year battery life (typical) with replaceable 3V camera battery

Simple auto-zero and calibration procedure

Full function self-test of: sensor, battery, and circuitry integrit
Built-in concussion-proof boot

GasAlertClipExtreme (Maintenance Free Single Gas Detector)

Gas Detected: H2S, SO2, CO or O2

2 year or 3 year maintenance free single gas detector

two alarm levels and an internal vibrator

Exceptionally low cost of ownership

Rugged, IP-66/67 highly water-resistant design

Records and displays the peak alarm encountered and the time since the exposure occurred

Provides typical 95 dB tone and bright, quad-LED indication on alarm

Internal vibrator alarm

Maintenance free—no sensor or battery replacement, no calibration, no downtime

Full function self-test of: audible/visual alarms plus integrity of sensor, battery and circuitry

Continuously ON—one button activation, test and data transmission

GasAlertMicro5 (5 Gases Detector)

Gas detected: VOC, CO2, H2S, CO, O2, SO2, PH3, NH3, NO2, HCN, Cl2, ClO2, O3, and combustibles

Integral concussion-proof boot

Optional integral motorized pump option for remote sampling

Powered by three AA alkaline batteries or a hot-swappable rechargeable battery pack
Triple alarms (audible, visual and vibrating)
Multi-language support in English, French, German, Spanish and Portuguese
Large, user selectable backlit LCD
Four alarm levels: Low, High, TWA and STEL
Compatible with MicroDock II Automatic Test and Calibration Station
Datalogging models store and recall event information
Wide range of user selectable field options including password protection, safe and stealth modes.

FIXED GAS DETECTOR (COMMERCIAL)
Carbon Monoxide Alarm *Features:* Motorola IC control, Reliable without false alarm Field audio and visible alarm Simple installation Excellent reliability & high stability Self test function Durable sensor head Less affected by other organic solvent High Accuracy CE and EN50291 Standard *Specifications:* Electrochemical sensor Audible Alarm at 85db Horn Operating voltage: 9VDC Response time: 30s Alarm level:150ppm CO±30% Working temperature -10degree~60 degree	Combustible Gas Alarm Combustible gas alarm, is designed to detect the concentration of combustible gas, adopts high-quality gas sensor with advanced technology and superior craft. It provides visual and audible signals when the gas concentration, such as LPG, natural gas, coal gas etc., reaches the preset level. It reminds you to take prompt favorable action. You may start up other link equipment, like opening windows or shutting off gas supply, to avoid fire, explosion, suffocation, and other malignant accidents.	Combustible Gas Alarm Gas alarm, is designed to detect the concentration of combustible, explosive natural and LPG gases, adopts high-quality gas sensor with advanced technology and superior craft. It provides visual and audible signals when the gas concentration reaches the presetting level. It reminds you to take prompt action. You may start up other link equipment, open windows or shut off gas supply to avoid fire, explosion, suffocation, and other malignant accidents.

Fixed Gas Detector (Industrial)

Flammable gas detector with display

Flameproof (Exd) flammable gas detector, which uses poison-resistant pellistors to detect explosive levels of hydrocarbons, hydrogen and other flammable gases and vapours, including aviation fuel and leaded petrol vapours.

Features:

Non-intrusive calibration

Calibration can be performed locally without the need for hot work permits
Local display and magnetic key enable calibration without opening the junction box

Flexible output options

A 4-20mA signal is provided
Optional alarm and fault relays are available to drive local alarm devices.
Sensor can be mounted remotely from the display/transmitter enclosure.

Rugged and reliable

Constructed using highly durable marine-grade alloy with a tough polyester coating
Ingress protection to IP65 as standard, IP66 with accessory
Uses long-life poison resistant pellistors.

Toxic and oxygen gas detector with display

Intrinsically Safe (I.S.) toxic and oxygen gas detector with local LCD display. A very wide choice of sensors are available for use in a variety of applications.

TXgard-IS+ is ATEX certified for use in Zone 0,1 or 2 hazardous areas, and also UL and cUL certified for use in Division 1 or 2 hazardous areas.

Features:

Non-intrusive calibration

Calibration can be performed locally without the need for hot work permits
Local display and buttons enable calibration without opening the junction box

Flexible output options

A two-wire 4-20mA signal is provided
The output can be forced up without applying gas to enable simple checking of control systems and alarms.

Rugged and reliable

Constructed using highly durable GRP to provide good impact resistance
Ingress protection to IP65 as standard
Uses long-life electrochemical cells

Toxic and oxygen gas detector with display

Flameproof (Exd) toxic and oxygen gas detector with local LCD display. A choice of sensors are available for use in a wide range of applications.

Features:

Non-intrusive calibration

Calibration can be performed locally without the need for hot work permits
Local display and magnetic key enable calibration without opening the junction box

Flexible output options

A 4-20mA signal is provided
Optional alarm and fault relays are available to drive local alarm devices.

Rugged and reliable

Constructed using highly durable marine-grade alloy with a tough polyester coating
Ingress protection to IP65 as standard, IP66 with accessory
Uses long-life electrochemical cells

Infrared flammable gas detector

Flameproof (Exd) infra-red flammable gas detector, which provides a cost effective solution for the protection of plant and personnel. It complies with standards world-wide and and is built to last in all manner of environmental conditions.

Features:

High reliability

Constructed using highly durable marine-grade alloy with a tough polyester coating
MTBF of 10 years
Detects gas with optical system obscured by up to 90%, ‘dirty optics’ warning is provided at 75% obscuration
IEC61508 SIL 2 compliant

Simple maintenance

Local status light which identifies up to 22 detector conditions
Simple calibration either remotely, or locally using a PC.

Flexible installation

Dual 4-20mA and RS-485 outputs ensure simple integration with new or existing installations.
Modbus serial link enables detectors to be multi-dropped, allowing addressable detectors to be controlled and interrogated remotely
Duct mounting accessory available

Infrared Flammable Gas Detector

Ultra-compact infrared (IR) gas detector which delivers rapid, fail-safe detection of hydrocarbon gases and vapours. The IRmax gas detection system offers the choice of a detector only, a local gas/status display, a remote gas/status display or non-intrusive calibration via an I.S. calibration tool or hand-held HART communicator.

Fixed IR Display

Shows gas level and status information
Simple non-intrustive calibration
Hand-held HART commuinicator compatible

Remote IR Display

Can be mounted up to 30 meters from IRmax
Monitor and calibrate without direct detector access
Choice of connection lead lengths

I.S. Hand-Held Calibrator

Calibrate IRmax detectors not fitted with Fixed or Remote IR Displays
One I.S. calibrator per IRmax fleet
Intrinsically Safe; suitable for hazardous area use

IRmax

Fast response
SIL 2 compliant
Wide range of gases

Open Path IR and Flame

Open Path IR or "line of sight" optical gas detectors offer reliable detection of hydrocarbon gas emmissions over large areas. OPIR detectors detect gas hazards ranging from low level Parts Per Million (PPM) levels to Lower Exposure Limit (LEL) levels in hazardous areas.

Features:

Hydrocarbon and H₂S versions available
Explosion proof to ATEX, UL and GOST-R Standards
Choice of models for ranges of 0.6m up to 140m
Aluminium or stainless steel construction
4-20mA or RS-485 operation, with alarm and fault relays available

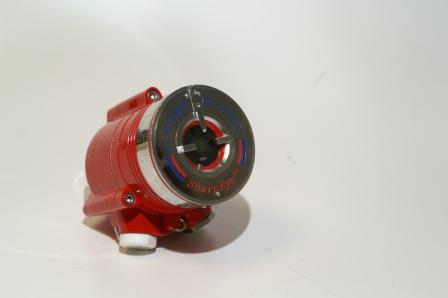

Flame Detectors

Supplies a wide range of detectors designed to detect flames extremely quickly and over long distances. The detectors can operate in difficult environmental conditions and incorporate sophisticated algorithms and logic to prevent false alarms.

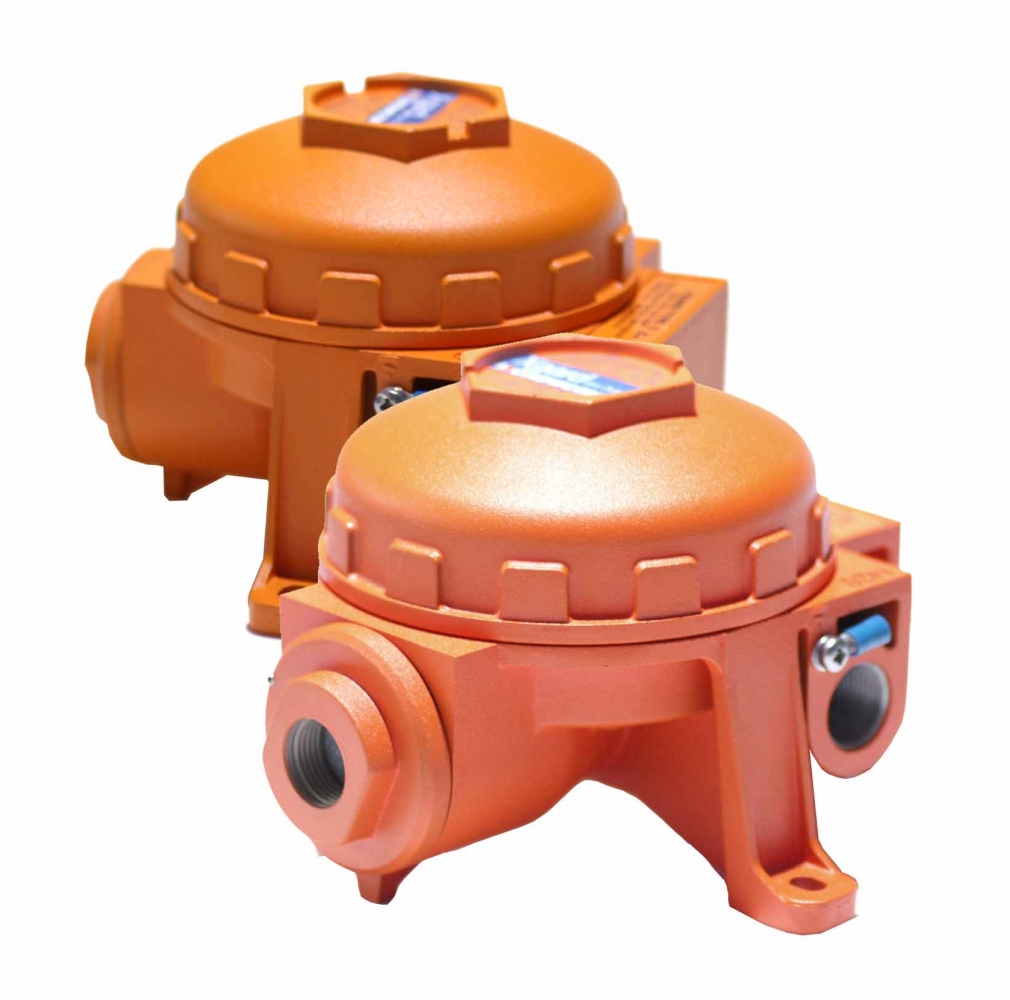

Detectors for flammable, toxic and oxygen gases

The Xgard range offers a comprehensive selection of fixed point gas detectors that meet the diverse requirements gas detection in industries throughout the world. Intrinsically Safe (I.S.) or Flameproof (Exd) versions are available for a wide range of applications.

Xsafe is a cost effective solution for flammable gas detection in safe areas such as boiler rooms, kitchens and commercial buildings.

Xgard offers a wide range of sensors:

Poison resistant pellistors for flammable gas detection
Electrochemical sensors are used to detect toxic gases and oxygen
Thermal conductivity sensors to monitor volume concentrations of gases

Infrared gas detector for flammable gases and carbon dioxide

Xgard IR is an explosion-proof gas detector which uses a dual-wavelength infrared sensor to provide highly dependable detection of hazardous gases and vapours

Xgard IR delivers the many advantages of IR technology in an affordable package:

Fail safe sensor technology
Immune to poisoning
No damage by over-gassing
Fast response
Does not need oxygen to work

Xgard IR is also available for protecting personnel against toxic and asphyxiation hazards from carbon dioxide (CO₂). CO₂ presents a hazard in breweries, pubs and restaurants, laboratories, refrigeration plants, buildings on landfill sites, theaters, commercial kitchens and anywhere where it is used in a process or where personnel work in poorly ventilated environment.

Carbon Dioxide (CO2) Alarm
CO₂ Monitor With Temperature and RH% Transmitting This 3-in-1 CO2 monitor is a desktop type unit designed for fast and accurate measurement of CO2 level, air temperature and humidity. Equipped with a triple LCD Display and programmable alarms complete with real time clock and calendar. It has a large LCD display and 15° tilt angle for easy reading. In addition, it has ABC (Automatic Baseline Calibration) and Manual Calibration option. The built-in Non-Dispersive InfraRed (NDIR) sensor provides long term stable monitoring. User can set 2 alarm limits: upper & lower limit. It has an audible & visual alarm to give warning when CO2 concentration exceeds the limit. Once CO2 level goes back to normal the alarm will automatically stop, alarm can be also be stop by pressing any key. Poor indoor air quality in rooms can lead to fatigue, lack of concentration and illness (Sick Building Syndrome) due to high CO2 concentration. IAQ monitoring and ventilation surveys of CO2 level & air ventilation become widely applied in public areas such as offices, classrooms, factories, hospitals, hotels.	Portable CO2 Detector Simplest carbon dioxide monitoring for ambient air Highly accurate infra-red sensing technology Inherently reliable, shockproof and weather protected Proven Gasman technology Intelligent sensors and self-checking functionality Meets the requirements of toxic gas performance standard EN45544 • True one button operation • Easy to read LCD display with backlight • Clear indication of operating status • 30 days advance calibration due warning • 95dBA audible alarm • Striking twin red/blue visual alarm • Internal vibrating alarm • 2 levels of instantaneous alarm • Time weighted average alarms	CO2 monitor with optional O2 display Cost effective CO2 and Oxygen monitor you can trust. Continuous monitoring for carbon dioxide in cellars and other confined spaces Optional oxygen sensor to detect asphyxiation hazards due to nitrogen cylinder leaks Automatically turn on ventilation fans Factory set alarm levels Clear back-lit display for gas readings Bright LEDs and loud, distinctive alarms Single button for routine operation and testing Plug-in repeater units complete with cable Calibration unit with automatic sequencing No specialist cabling required IP65 protection against dust and water ingress Tough polycarbonate case Wide operating temperature range Battery backup for mains failure (optional) Dual-band infrared sensor for carbon dioxide Only turn on ventilation fans when they are needed Long-term maintenance-free operation Minimal sensor calibration requirements Long-life sensors

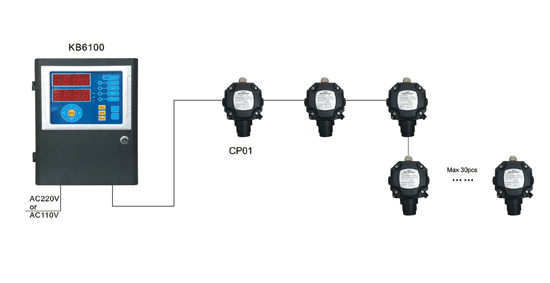

Gas Controller for car parking

Gas controller is multi-point detection panel developed by our company used for car park and commercial use. It can connect our fixed gas detector CP01, GN Series. When the gas concentration reaches or exceeds the pre-set alarming levels, the controller immediately gives visible and audible alarming, which reminds us adopting safety measurement and start up the monitor to monitor the ventilation and other equipments. In this way, you can avoid poisoning, explosion and fire accruing. With digital display and keyboard operation, this system is easy to operate.

Fixed Gas Detector

ATEX Approved

Features:

Target gas: Combustible gases and Toxic gases

Excellent repeatability

Hardly affected by the Term and Hum

High sensitivity and Long Life

Low drift and reliable performance

Small size and easy to install

4-20mA or RS485 signal output

PCB protection design can reduce fault rate

Explosion proof design, suitable for hazardous place use

RKI FIXED SYSTEM CONTROLLERS

BEACON 110

The Beacon 110 is a powerful, low cost fixed system controller for one point of gas detection. It is microprocessor controlled, versatile, simple to install and operate, and priced to be the industry's best value single gas detection controller

Features

Low cost versatile solution
Compact, weatherproof, NEMA 4X enclosure
115/220 VAC or 24 VDC operation
Long life sensors (2+ years typical)
Accepts RKI LEL/O2/H2S/CO direct connect sensors
Accepts any 4-20 mA transmitter
Audible alarm with reset button
Two programmable alarm levels
Built-in trouble alarm with relay
Relay rating 10 amps, form C
Provides 4-20 mA output

BEACON 200

The Beaconª 200 is a powerful, low cost fixed system controller for two points of gas detection. It is microprocessor controlled, versatile, simple to install and operate, and priced to be the industry's most economical two point controller. It is capable of connecting directly to RKI sensors for LEL level combustibles, Oxygen, Hydrogen Sulfide, or Carbon Monoxide. The Beaconª 200 can also accept any 4-20 mA transmitter (2 or 3 wire, 24 VDC).

Features

Simultaneous readout on 2 channels
Two alarm levels per channel
Discrete and common relays
NEMA 4X enclosure
4-20 mA outputs
Proven, long-life sensors for a wide variety of gases
Accepts any 4-20 mA transmitter input (24 VDC)
Easy to install, operate and expand

BEACON 410

The Beacon 410 is a highly configurable, microprocessor-based, flexible and easy to use 4 channel gas monitor. It simultaneously displays the gas type, readings, and status for 4 channels of gas detection. It can monitor any combination of direct connect sensors (LEL combustibles, Oxygen, Hydrogen Sulfide, Carbon Monoxide, and Carbon Dioxide) as well as any 4-20mA transmitters.

Features

Simultaneously monitor up to 4 channels
Digital display of all 4 channels
Accepts direct connect sensors for LEL / O2 / H2S / CO / CO2
Accepts any 4-20 mA transmitter, 2 or 3 wire
3 programmable alarm levels per channel
Up to 3 configurable alarm relays per channel
Zero follower automatically compensates sensor drift
4-20 mA analog & Modbus digital output standard
115 / 220 VAC or 24 VDC operation
Audible alarm with silence feature
Alarm reset switch
Built in trouble alarm with relay
Weather proof NEMA 4X enclosure
Optional strobe & battery backup available

BEACON 800

The Beaconª 800 is a versatile, low cost fixed system controller for one to eight points of gas detection. It is microprocessor controlled and is capable of accepting up to 8 separate 4-20 mA sensor transmitters which can be either 2 or 3 wire. The Beaconª 800 can be powered by either 24 VDC, or 85-264 VAC. It is simple to operate and comes complete with a wall mount installation kit.

Features

Capable of up to 8 separate channels
Digital display of all 8 channels simultaneously
Compact, weatherproof, NEMA 4X enclosure
85 to 264 VAC or 24 VDC operation
Long life sensors (2+ years typical)
Accepts any 4-20 mA transmitter
Audible alarm with reset button
Two programmable alarm levels per channel
Common alarm and fail relays
Relay rating 3 amps, form C
Low cost versatile solution

RKI FIXED SYSTEM GAS DETECTOR HEADS

M2A SERIES The RKI M2A™ is a state-of-the-art transmitter that can operate as an independent, stand-alone monitor or as part of an integrated system. The M2A connects with an analog or digital signal to virtually any controller, PLC, or DCS. Setup procedures are simplified with user friendly push buttons and LCD menus. It utilizes a magnetic wand technique for performing non-intrusive calibration. The M2A provides an automatic zero drift correction feature, which results in more stable readings and reduces the need for adjustments due to sensor aging. Features Operates with or without a controller Direct digital readout with OLED display Available gases include LEL and CO2 Infrared sensor for combustibles and CO2 4-20 mA & digital Modbus outputs standard 2 fully programmable alarm relays & fail relay Non-intrusive calibration via magnetic wand Explosion proof construction Patented water repellent sensor cover User friendly setup, push buttons & LCD menus Long-life sensors (2 - 5 years typical for catalytic, 5 -10 years typical for IR) More	S2 SERIES The RKI S2 series gas sensor/transmitters are highly reliable and very cost effective for the detection of common gas hazards. The S2 series are available for LEL, H2 Specific (LEL, and ppm), Oxygen, H2S, CO, and for a variety of toxic gases. The transmitters for LEL, H2 Specific, Oxygen, H2S, CO2, and Carbon Monoxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class l, Groups B, C, D). An optional non-explosion proof version is available for oxygen, H2S, CO, and CO2 in non-hazardous atmospheres. LEL sensors are available using catalytic bead and infrared technologies. Features Available gases include LEL, H2S, CO, PPM H2, and CO2 Toxic gases include NH3, SO2, HCN, and more Infrared sensor for combustibles and CO2 Hydrogen-Specific now available Patented water repellent sensor coating 4-20 mA output Explosion proof construction Optional stainless steel junction box More	M SERIES The RKI low cost CO/H2S transmitter is a highly reliable and very cost effective basic 4-20 mA transmitter for the detection of carbon monoxide and hydrogen sulfide. The electronics are protected inside a plastic enclosure to avoid damage from mechanical abuse, water, dust or corrosion. Sensors for H2S and CO are long life and typically last 2 - 3 years. Features Water/dust resistant housing Available for H2S and CO Long life sensors (2 + years typical) Competitively priced Compact design More	GD-70D SERIES The new Model GD-70D smart gas detection transmitter series sets a new standard for performance, flexibility, and versatility. The GD-70D sample-draw transmitter offers an array of sensor technologies unmatched in the industry, including unique offerings, such as our hydrogen-specific or LEL versions. Features Monitor combustibles, O2, and a wide range of toxics Plug and play smart sensors retain calibration and sensor data Common platform (Main unit / Sensor / Pump) for all detection methods Universal main unit (all sensor types) Multifunctional sensor unit (New Intelligent sensor) No internal tubing (main unit) / No coil (pump) Front access, no tool required, easy sensor and pump replacement Large size LCD screen Various communication methods available (4-20mA, NT and PoE) Minimal maintenance cost through enhanced troubleshooting firmware functions Small mounting space Environmentally friendly Wide variety of sensors available More
GD-K8A SERIES The GD-K8A is a diffusion style toxic gas detection transmitter ideally suited to meet your toxic gas detection needs. You can choose from a wide variety of toxic sensors to install in this model. The GD-K8A is an ideal solution for many toxic gas monitoring applications. The low profile design is only 1.5 inches thick and is easy to install. The hinged housing makes it easy to maintain. This transmitter can be installed with any RKI controller, or integrated to existing PLC or DCS system via 4-20mA output (24VDC two-wire, loop powered). Features Diffusion style head Low profile design Quick response sensors Many toxic sensors to choose from 3 to 5 year typical sensor life Easy maintenance Selective for target gas Low cost of ownership More	H2 SPECIFIC SENSOR RKI offers unique proprietary sensor technologies for hydrogen specific detection in either the % LEL or PPM ranges. By utilizing a proprietary molecular sieve coating that is built into both our catalytic or solid state sensors, false alarms from typical hydrocarbon interfering gases are essentially eliminated. Features Explosion proof housing and sensor design H2 specific solid state sensor for 0 - 2000 ppm H2 specific catalytic sensor for 0 - 100%LEL Molecular sieve filter built in; highly specific to H2 Eliminates false alarms from IPA and other gases 4-20 mA transmitter, 24VDC More	DIRECT CONNECT The RKI Direct Connect series gas sensors are highly reliable and very cost effective for the detection of common gas hazards. The direct connect series are available for LEL, H2 Specific LEL, LEL IR, Oxygen, H2S, CO, CO2, and for a variety of toxic gases. The sensors for LEL, H2, Oxygen, H2S, CO2, and Carbon Monoxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class 1, Div. 1 Groups B, C, D). An optional non-explosion proof version is available for oxygen, H2S, CO, and CO2 for use in non-hazardous atmospheres. Features Available gases include LEL, H2S, CO, & CO2 Toxic sensors include NH3, AsH3, HCN, PH3, and SO2 Infrared sensor for combustibles and CO2 Patented water repellent sensor coating Explosion proof construction Optional stainless steel junction box More

CROWCON CONTROL PANELS

Gasflag Entry level control panel Gasflag is a control system for monitoring any 4-20mA flammable, toxic or oxygen gas detector. Gasflag is ideally suited to light industrial or commercial applications such as LPG monitoring on garage forecourts, chlorine detection in swimming pool dosing rooms, or methane detection in boiler rooms. Gasflag features a loud sounder, bright LED indicators and relays for switching external devices such as audible visual alarms or valves. Features include: Loud internal audible alarm Clear system integrity indication Accepts industry standard 4-20mA inputs Multiple units can be daisy-chained Variable alarm configurations Integral alarm outputs Simple installation Minimum maintenance One button operation	Gasmaster 1-4 channel gas detection control panel The Crowcon Gasmaster is a compact, versatile and powerful gas detection control panel that combines simple operation with an extensive array of input and output functions. Crowcon Gasmaster provides all the information you need about your gas and fire detectors at a glance. The large multi-lingual display shows gas levels from all detectors simultaneously and enables system adjustment and testing using buttons on the front panel. Crowcon Gasmaster can operate ‘stand-alone’ or interface with any alarm devices and control systems using a selection of outputs. Features include: Controls up to 4 gas detectors or fire zones: Gasmaster provides a comprehensive and cost effective localized gas and fire control system. Large display: Large LCD provides simultaneous display of all channels, and multi-lingual alarm/fault messages. User friendly menus: The menu system is intuitive and easy to use, enabling configuration changes to be made easily. Versatile I/O functions: Gasmaster can connect to a wide variety of detectors and provides analogue, relay and Modbus outputs. Modular design: Users only need to purchase the required number of input modules, saving cost. 1, 2 and 3 channel systems can be extended later by adding additional modules. Gasmaster 4 only Accessories	Vortex 1-12 Channel Flexible Format Control System Vortex Rack & Panel comprise just the essentialinput, output and controller modules mounted on a DIN rail. An optional display module is available in panel-mounting and 19" Rack formats. This configuration is ideal for incorporation into a variety of specialist enclosures, such as 19" format or those with high ingress protection. Other standard features include RS-485 Modbus communications for remote non-intrusive calibration and configuration. Features include: Up to 12 devices can be monitored by reviewing just one control panel LED display panel lights, so faults are easily seen and the whole system can be checked at a glance Modbus compatibility so no extensive cabling required Uses industry standard communication links Validated to IEC 61508 (SIL 1) System monitors relays continuously so coil faults are identified immediately Internal battery pack so power outs are not a problem Accessories
Vortex FP Flameproof Control System Vortex FP and Vortex FP Compact are ATEX certified Exd Flameproof control panels for use in Zone 1 or Zone 2 hazardous areas such as on offshore production platforms or within refineries. Both offer all of the standard Vortex features, as well as a display fitted with magnetic switches which enable the system to be interrogated or inhibited without opening the system enclosure. Simple to Use All the day to day operations can be completed via push buttons on the front panel, removing the requirement for hot-work permits to complete everyday tasks Fault and alarm LEDs on the front panel provide instant indication of system status Alarm and channel settings can be adjusted at the panel Highly flexibile Available in two sizes, including a compact format for use in areas where space is a limiting factor Customisation is easy with the Vortex PC software, our user friendly Windows package Vortex uses industry standard Modbus RTU (or optionally Profibus) communications links making it simple to integrate with PLC, DCS or SCADA control systems Robust and Reliable Tested to the highest standards, Vortex FP systems are water and dust resistant to IP66 All the relays are monitored continuously ensuring full functionality, always

PORTABLE GAS DETECTOR

FIXED GAS DETECTOR (COMMERCIAL)

Carbon Monoxide Alarm

Combustible Gas Alarm

Combustible Gas Alarm

Fixed Gas Detector (Industrial)

Flammable gas detector with display

Features:

Toxic and oxygen gas detector with display

Features:

Toxic and oxygen gas detector with display

Features:

Infrared flammable gas detector

Features:

I.S. Hand-Held Calibrator

IRmax

Features:

Flame Detectors

Detectors for flammable, toxic and oxygen gases

Detectors for flammable, toxic and oxygen gases

Infrared gas detector for flammable gases and carbon dioxide

Infrared gas detector for flammable gases and carbon dioxide

Carbon Dioxide (CO2) Alarm

Gasflag

Entry level control

panel

Gasmaster

1-4 channel gas detection control panel

Vortex

1-12 Channel Flexible Format Control System

Vortex FP

Flameproof Control System
